HCL-Series

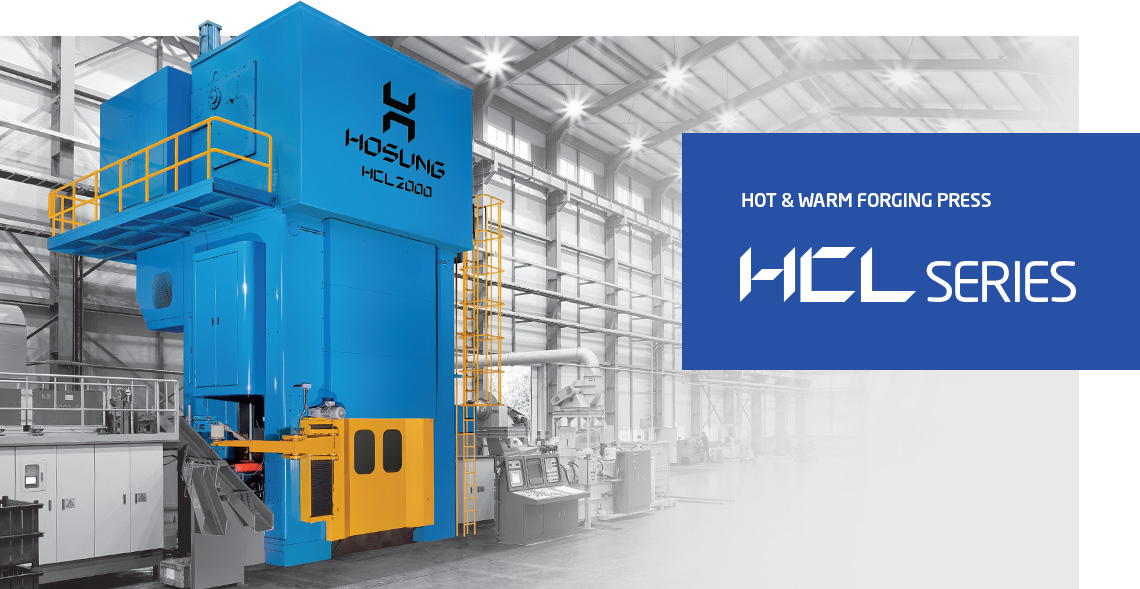

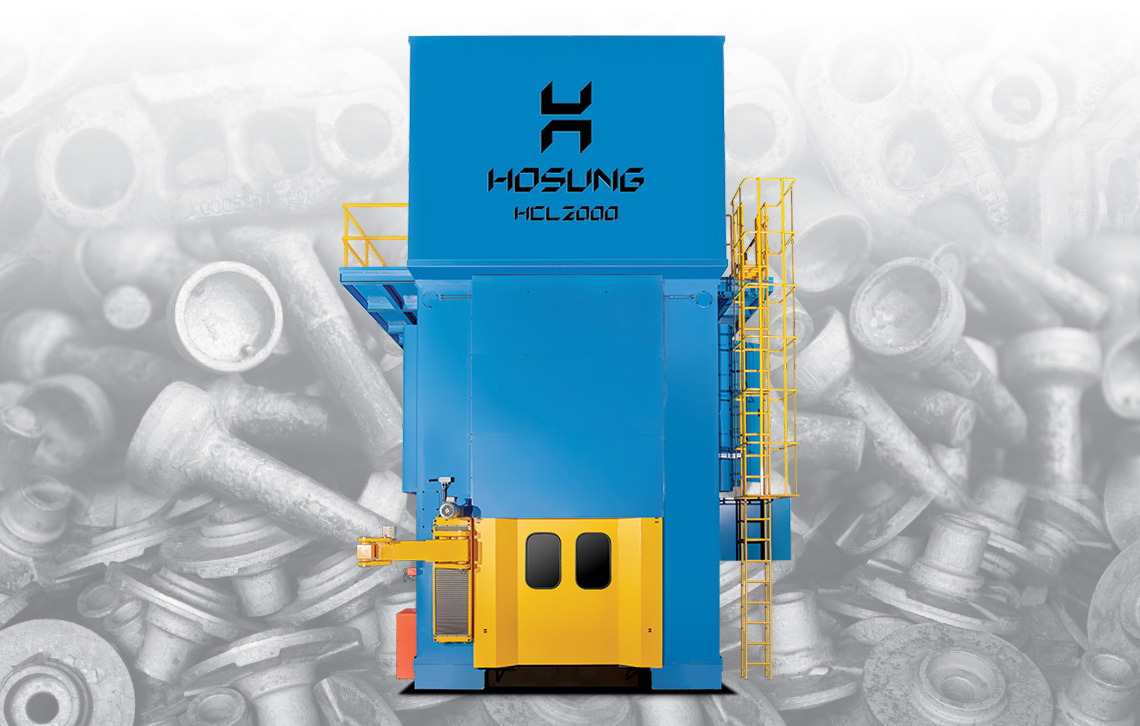

HCL Series (Crankless Press)

The HCL series is suitable for hot and warm forming operations and has higher strength than crank presses and high forging ability on the bottom dead point. In addition, HCL Series is easy to maintain the parallelism of slides when pressurized, and can keep the precision of press machine in static condition same in dynamic condition. It is easy to lubricate and repair the driving part and possible to perform forging work requiring long stroke.
In addition, a fine adjustment is available during forging work with a built-in structure consisting of slide control device and overload protector with special structure inside the slide to minimize the occurrence of left/right eccentric load and prevent overload. It is suitable for continuous operation instead of single operation, so can secure the production quantity more than that the general hot forging press operation can produce.

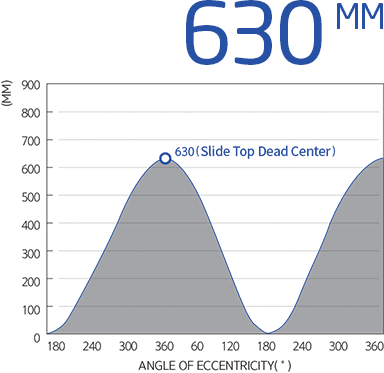

630mm

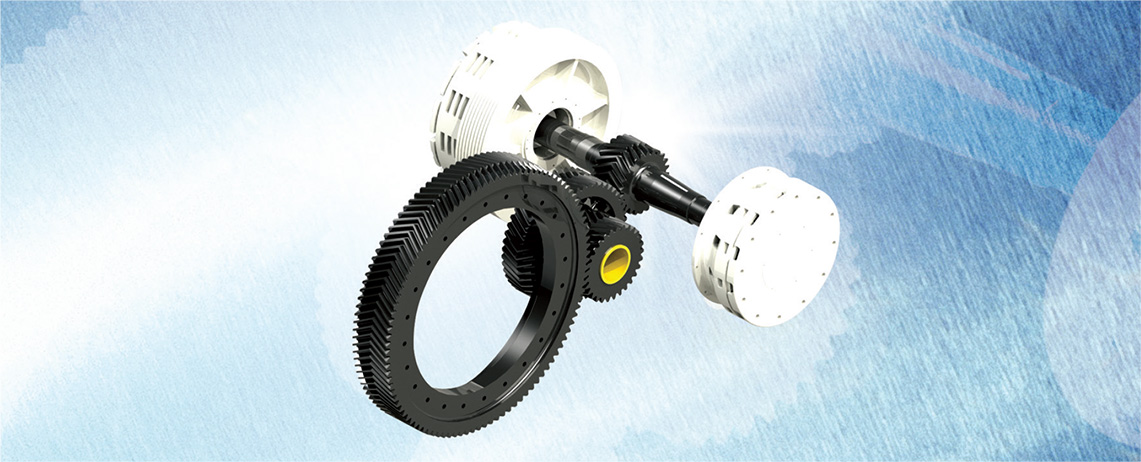

  • Drive System

    Drive system minimizes the energy return time through 3 speed reduction gear drive and has sufficient torque capacity for continuous operation.

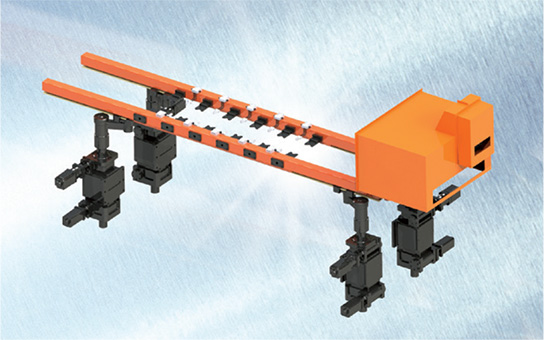

  • Transfer

    Transfer is an automatic conveying system of servo control system
    optimized for multi-process precision forging.

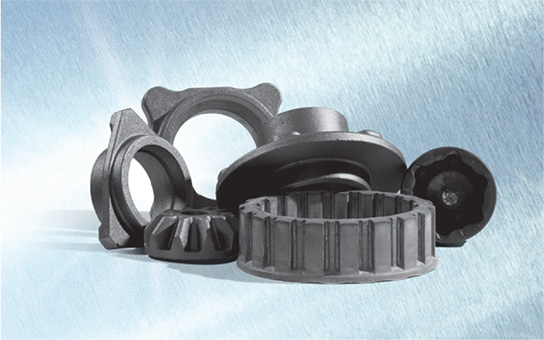

  • Parts

SPECIFICATIONS
specifications of HCL-series
Type HCL-1250 HCL-1600 HCL-2000 HCL-2000
Capacity (ton) 1,250 1,600 2,000 2,000
Stroke (mm) 500 630 630 800
Stroke Per Minute (SPM) 20 ~ 40 18 ~ 35 18 ~ 35 18 ~ 32
Slide Area, LR x FB (mm) 1,500 x 850 2,030 x 1,000 2,030 x 1,000 2,030 x 1,100
Bed Area, LR x FB (mm) 1,500 x 850 2,030 x 1,000 2,030 x 1,000 2,030 x 1,100
Slide Adustment (mm) 10 10 25 25
Die Height (mm) 1,360 1,600 1,600 1,600
Upper Ejector (mm) 50 70 70 70
Lower Ejector (mm) 150 180 200 200
Main Motor (kw) 210 300 310 350
OPTIONS
  • Die Set
  • Q.D.C Device
  • Load Monitor
  • Die Lifter Device
  • Auto Transfer Device
  • Auto Lubrication Device

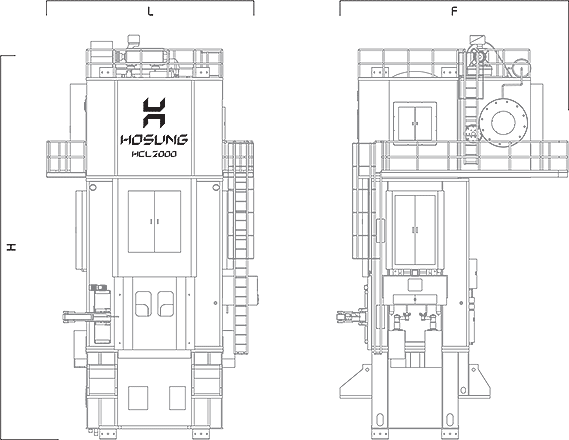

DIMENSIONS
HCL-series 외형치수
Type HCL-1250 HCL-1600 HCL-2000 HCL-2000
L (mm) 5,900 6,600 6,600 6,600
F (mm) 6,500 7,300 7,400 7,500
H (mm) 9,250 12,500 12,660 13,030

* The specification of this machie can be modified without a prior notification.
