HSP-Series

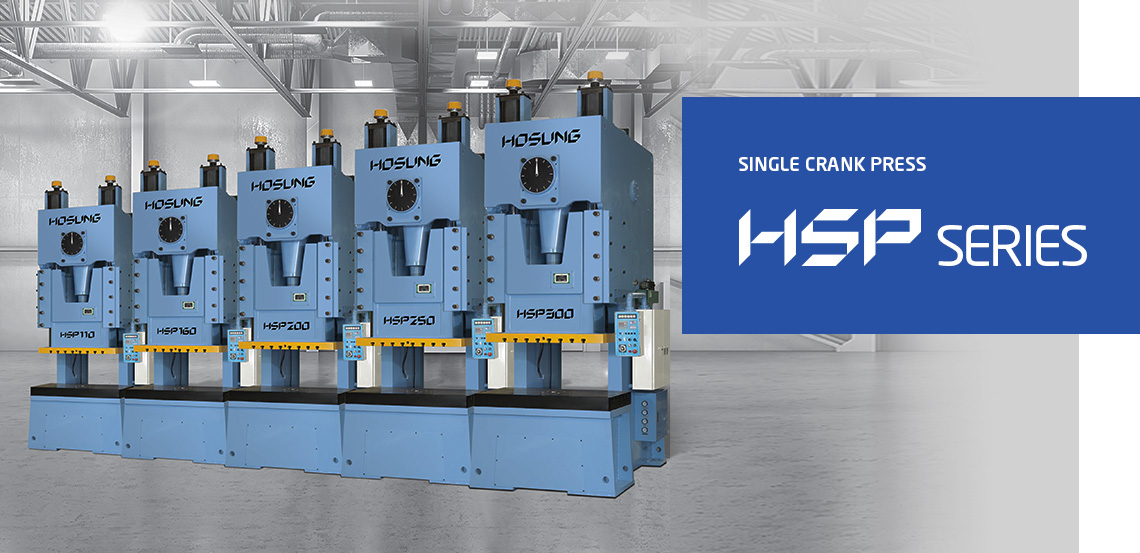

HSP Series

HSP series ensure dynamic precision, the most important characteristic of crank presses, and possess all the features required for un-manned operation, such as general finishing, progressive finishing, and transfer finishing, offering superior operability and well-designed overall structure.

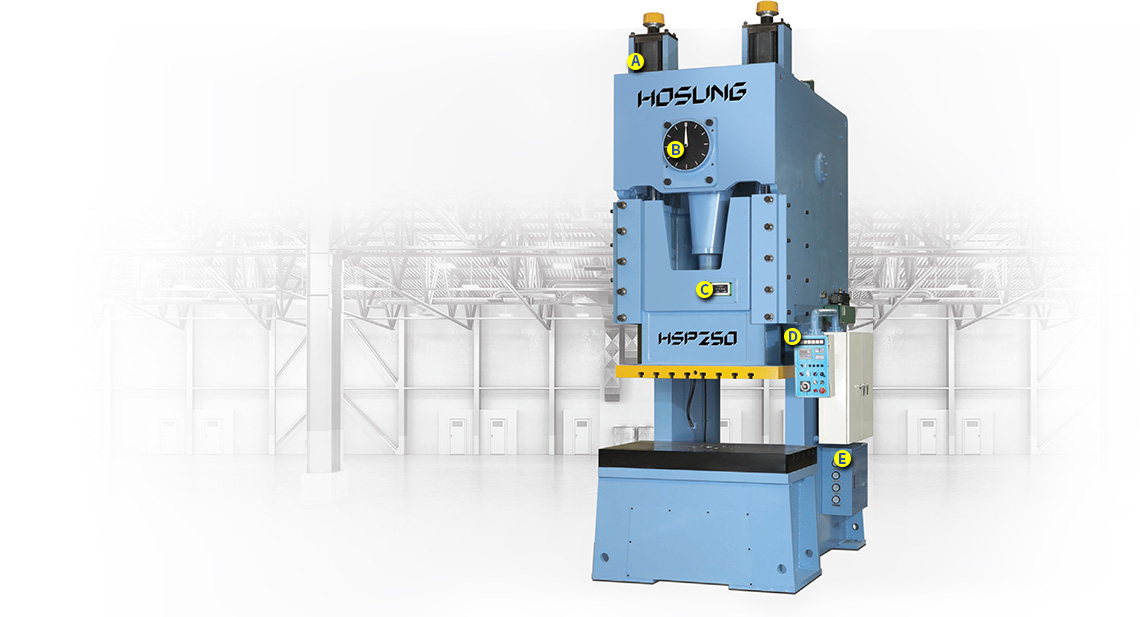

HSP TECHNOLOGY
  • A. Counter Balance
  • B. Crank Angle Indicator
  • C. Die Hight Counter
  • D. Electrical Control Panel
  • E. Electrical·Pressurized Air Control Board

* The structure is based on the HSP-250 depending on the model,
the shape and structure may vary.

SPECIFICATIONS
HSP-series 사양
Type HSP-110 HSP-160 HSP-200 HSP-250 HSP-300
Capacity (ton) 110 160 200 250 300
Capacity Limitation (mm) 5 6 6 6 6
Stroke (mm) 180 200 250 260 260
Stroke Per Minute (SPM) 50 45 40 35 35
Slide Area, LR x FB (mm) 750 x 520 1,000 x 580 1,100 x 650 1,300 x 650 1,300 x 650
Bed Area, LR x FB (mm) 1,100 x 700 1,300 x 760 1,450 x 850 1,500 x 850 1,500 x 850
Thickness of Bolster (mm) 110 120 130 140 140
Die Height (mm) 420 450 500 550 700
Slide Adjustment (mm) 90 100 120 120 120
Main Motor (kw) 11 15 19 22 30
Die Cushion
Capacity (ton) 7 11 14 15 15
Stroke (mm) 105 110 130 140 140
Area of Pad (mm) 500 x 400 520 x 450 760 x 480 760 x 520 760 x 520
Air Pressure (kgf/㎠) 5 5 5 5 5
OPTIONS
  • Die Set
  • Q.D.C Device
  • Load Monitor
치수

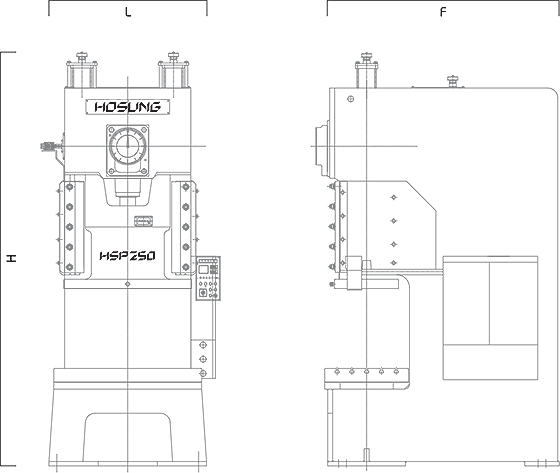

DIMENSIONS
dimensions of HSP-series
Type HSP-110 HSP-160 HSP-200 HSP-250 HSP-300
L (mm) 1,200 1,400 1,600 1,600 1,600
F (mm) 1,950 2,200 2,300 2,400 2,400
H (mm) 3,225 3,490 3,760 4,035 4,185

* The specification of this machie can be modified without a prior notification.
