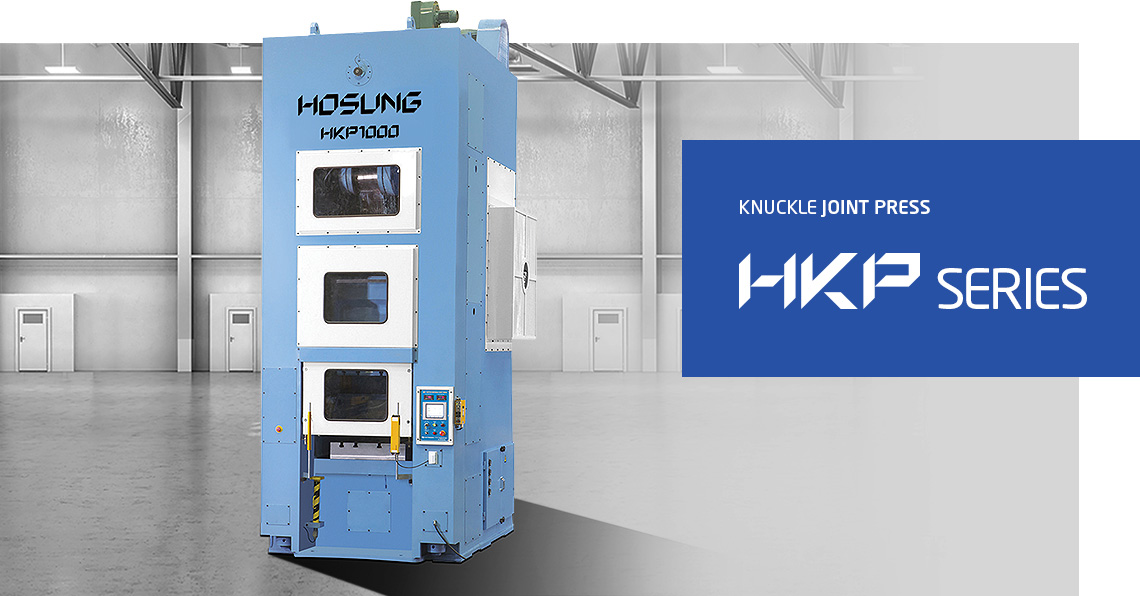

Powerful forces and exquisite quality of HOSUNG PRESS
The HKP series driven by knuckle mechanism system is appropriate to produce cold forging by low noise and vibration.
Since knuckle mechanism system additionally has distinctive motional curve which shows the speed of the slide is getting slower around bottom dead center, it is also suitable for forming by compression such as coining and sizing.

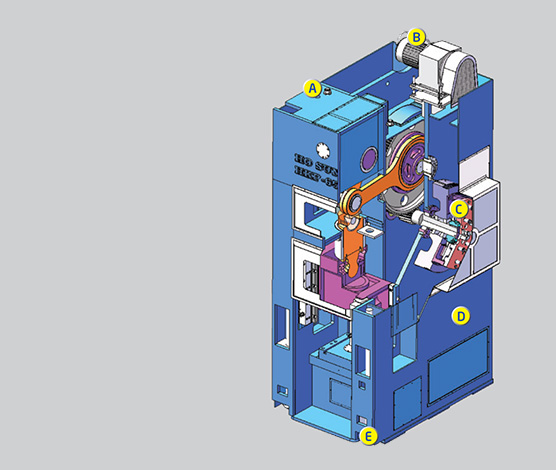

FRONT

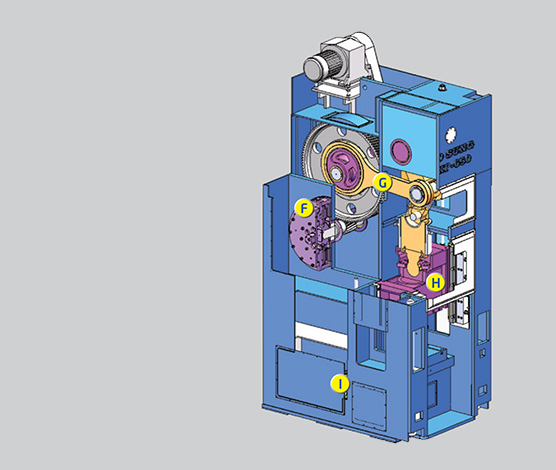

REAR
* The structure is based on the HKP-1000 depending on the model, the shape and structure may vary.
| Type | HKP-400 | HKP-650 | HKP-800 | HKP-1000 |
|---|---|---|---|---|
| Capacity (ton) | 400 | 650 | 800 | 1,000 |
| Tonnage Point (mm) | 7 | 7 | 8 | 10 |
| Stroke (mm) | 160 | 200 | 220 | 500 |
| Stroke Per Minute (SPM) | 22 ~ 45 | 20 ~ 40 | 15 ~ 35 | 8 ~ 15 |
| Slide Area, LR x FB (mm) | 600 x 500 | 700 x 600 | 800 x 700 | 1,000 x 1,000 |
| Bed Area, LR x FB (mm) | 700 x 600 | 800 x 700 | 900 x 800 | 1,000 x 1,000 |
| Die Height (mm) | 450 | 505 | 550 | 1,025 |
| Slide Adjustment (mm) | 15 | 15 | 20 | 50 |
| Upper Ejector (mm) | 50 | 50 | 50 | 100 |
| Lower Ejector (mm) | 100 | 100 | 110 | 250 |
| Main Motor (kw) | 37 | 45 | 55 | 90 |

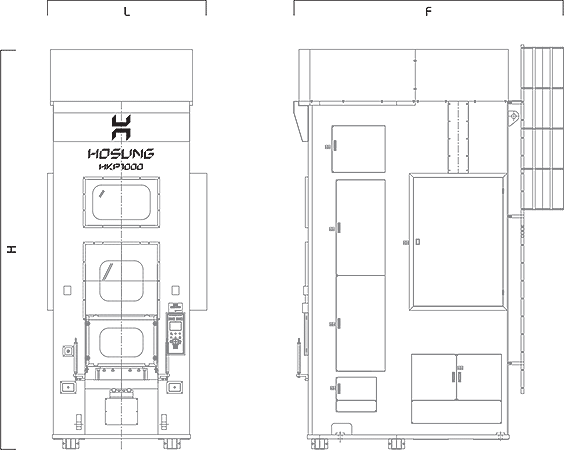

| Type | HKP-400 | HKP-650 | HKP-800 | HKP-1000 |
|---|---|---|---|---|
| L (mm) | 2,070 | 2,295 | 2,350 | 3,330 |
| F (mm) | 3,520 | 3,910 | 4,145 | 5,900 |
| H (mm) | 5,365 | 6,145 | 6,740 | 10,300 |
* The specification of this machie can be modified without a prior notification.
